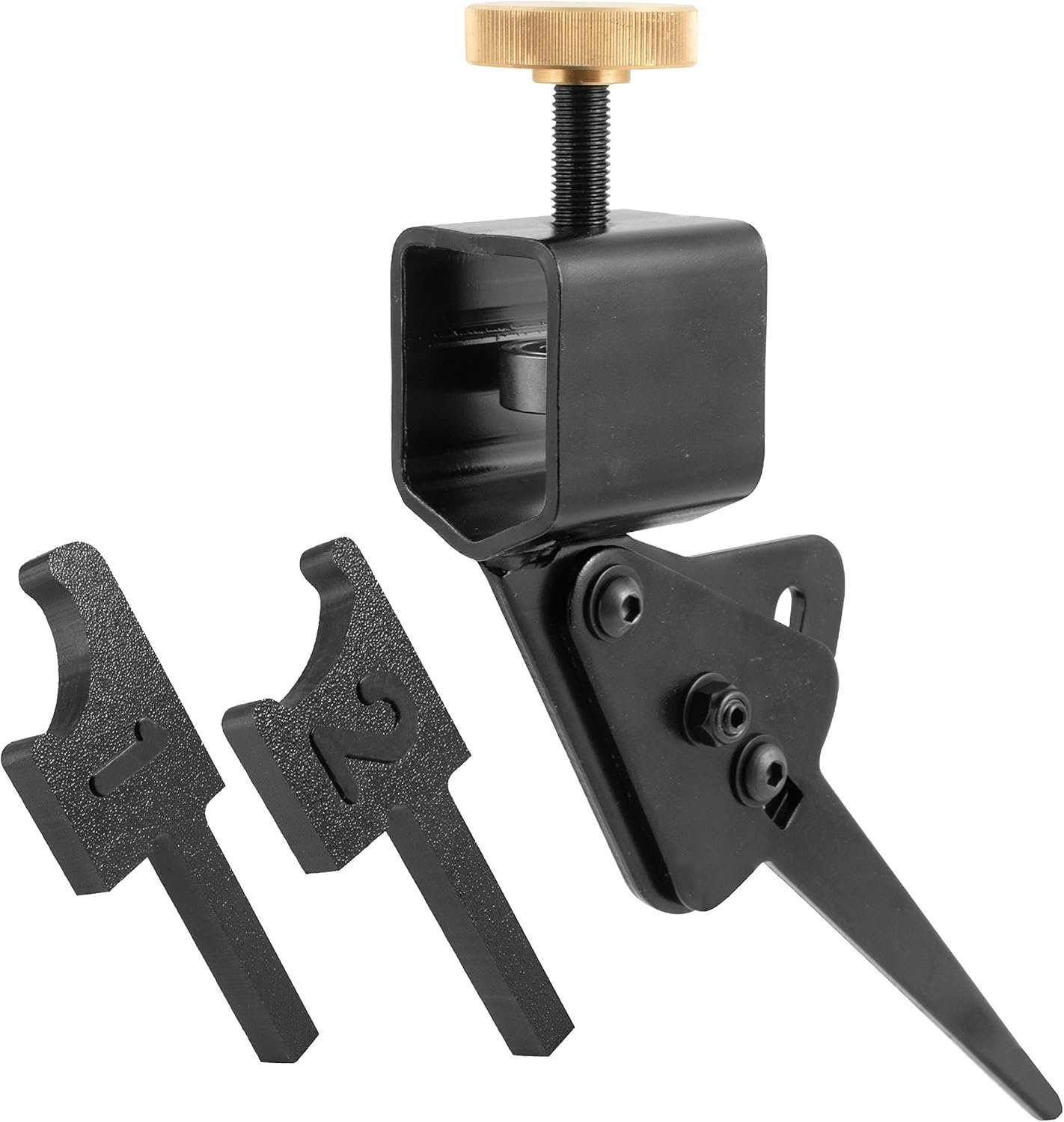

Pro Grind Multi-Grind Sharpening Jig with Setup Blocks for Multiple Tool Grinds and For Use with Sharpening Systems that Use Pocket V-Arm Attachments

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Standard Grind

Sharpen Your Bowl Gouge to A Standard Grind

The Standard Grind is used by most tool manufacturers for bowl gouges.

Short Grind

Sharpen Your Bowl Gouge to A Short Grind

The short grind is a special type of grind that is useful for finishing the bottom of bowls.

Long Grind

Sharpen Your Bowl Gouge to A Long Grind

This is the most useful all around bowl gouge grind and is the preferred grind for green wood.

Fingernail Grind

Sharpen Your Spindle Gouge to A Fingernail Grind

A spindle gouge with a fingernail grind enables a turner to turn beads and coves.

1 Standard Grind

2 Short Grind

3 Long Grind

4 Fingernail Grind

Does this come with the two set up blocks?

Yes, the Multi-Grind Jig comes with two setup blocks to make your sharpening set up easier

Does this jig work with the wolverine sharpening jig system?

Yes, the Multi-Grind Jig works with most any standard sharpening system that has a “v-arm” attachment.

Can I sharpen carbide turning tools with this?

Unfortunately no, this tool is designed for use with standard bowl gouges and spindle gouges

What is the Multi-Grind made out of?

The Multi-Grind is made out high quality steel and has a smooth action brass knob to secure your tool when sharpening

Do I need a sharpening system for this jig to work

Yes, you will need a sharpening system with a “v-arm” pocket attachment for the Multi-Grind jig to properly work

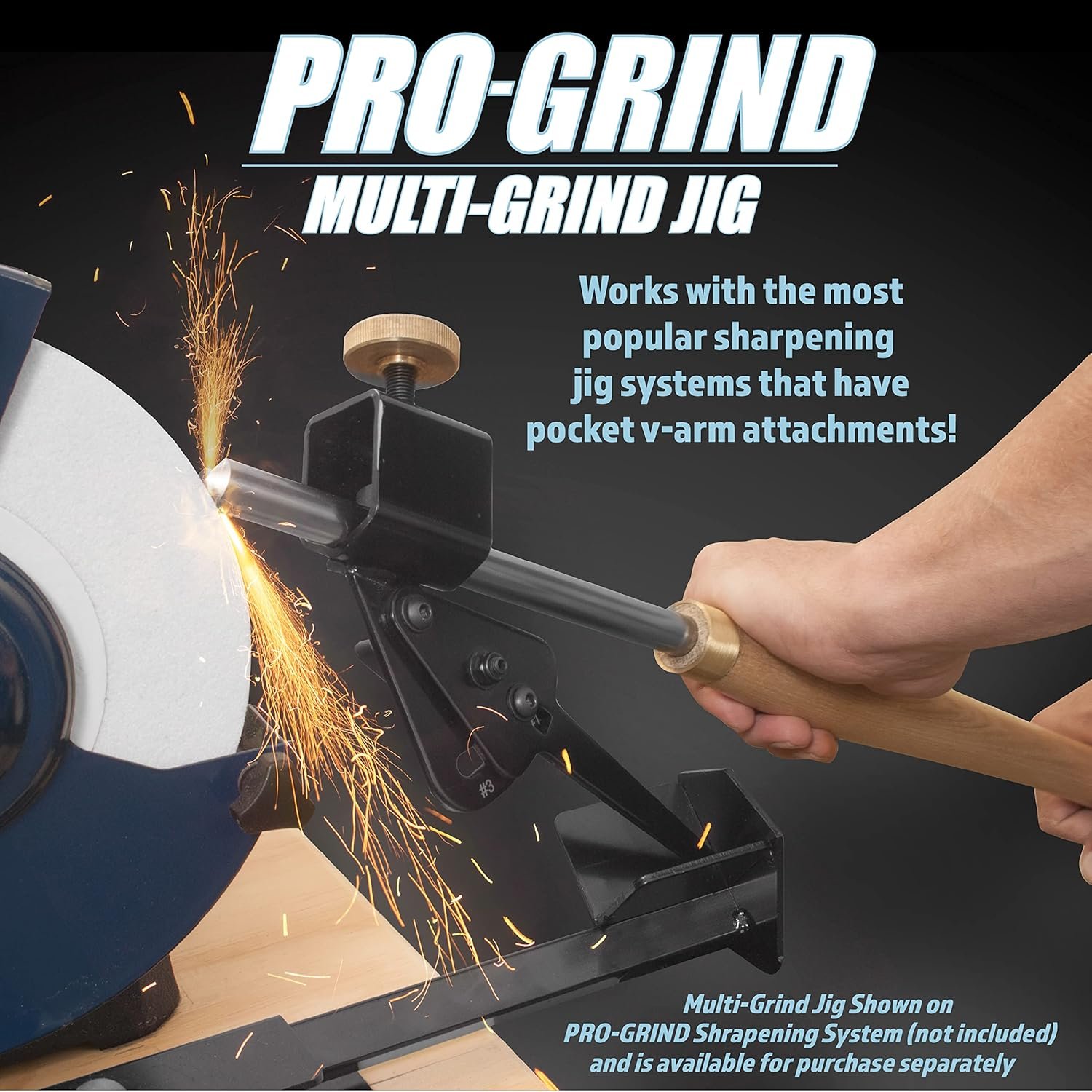

One of the more challenging angles or grinds to achieve on our turning tools is getting the grind correct on a bowl gouge or spindle gouge. We have developed the Multi-Grind Jig with setup blocks to eliminate the guess work so you can focus on making the perfect bowl gouge or spindle gouge grind every time! Using this jig with any system that has a pocket v-arm attachment (not included) will make your bowl/spindle gouge sharpening experience much smoother than ever before!

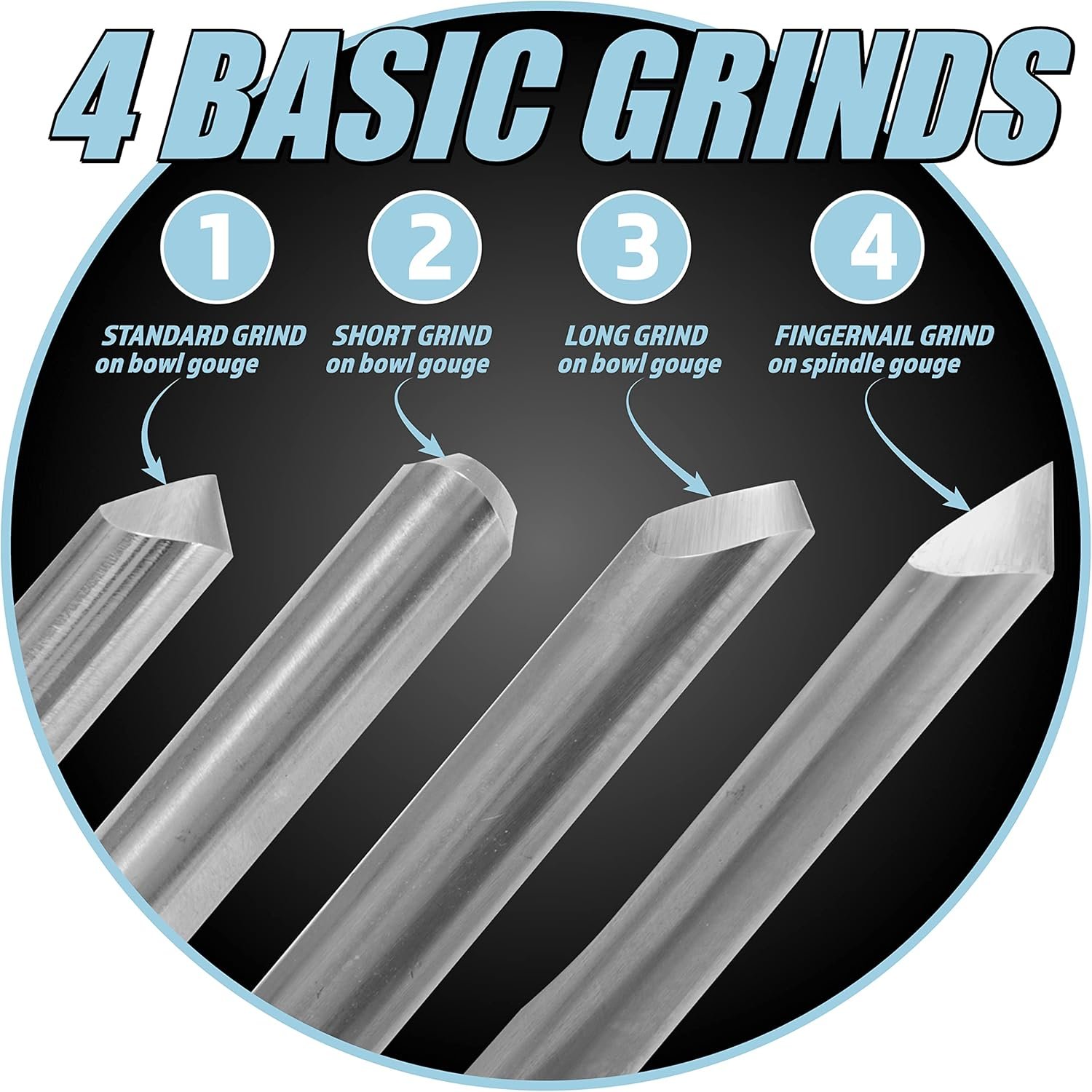

Typically there are 4 basic grind types (3 types of bowl gouges and 1 type for spindle gouges). The 4 basic grind types are standard, short and long for bowl gouges and fingernail grind for spindle gouges. These grinds are all simple to achieve using the Multi-Grind Jig and we show you how to do them in the included instructions

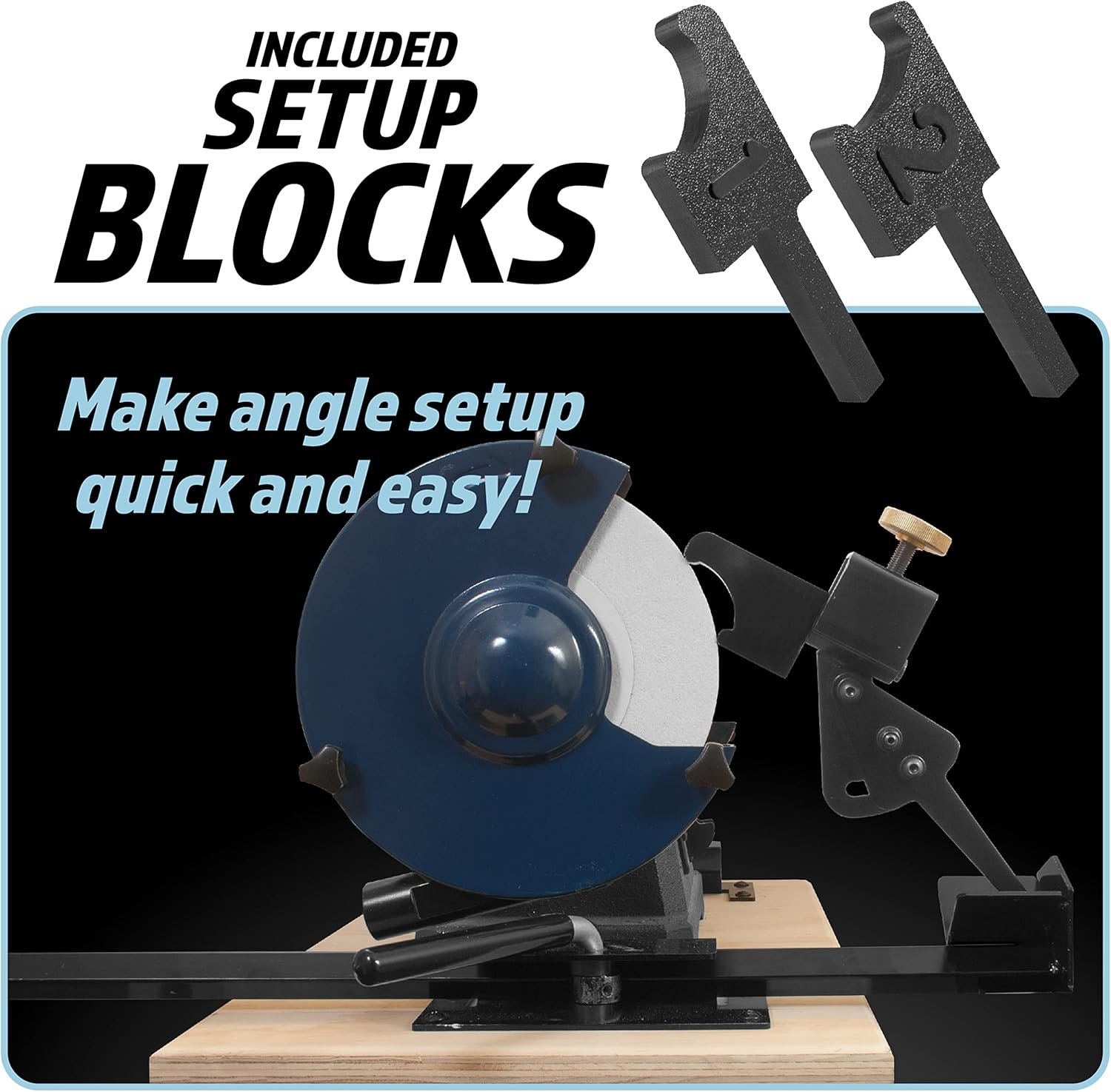

With this jig and included setup blocks, you’ll be able to quickly and accurately set your tool grind projection, the correct tool angle (depending on desired grind you choose) and the proper pocket v-arm depth. Having these three variables simplified makes your setup process so much easier!
Once your setup, the Multi-Grind Jig with your tool mounted makes grinding the round shape of bowl gouge very easy and very smooth when compared to free hand grinding. The natural pivoting, rolling action in provides allows you to not achieve the perfect grind, but keeps your fingers away from the wheel at the same time.

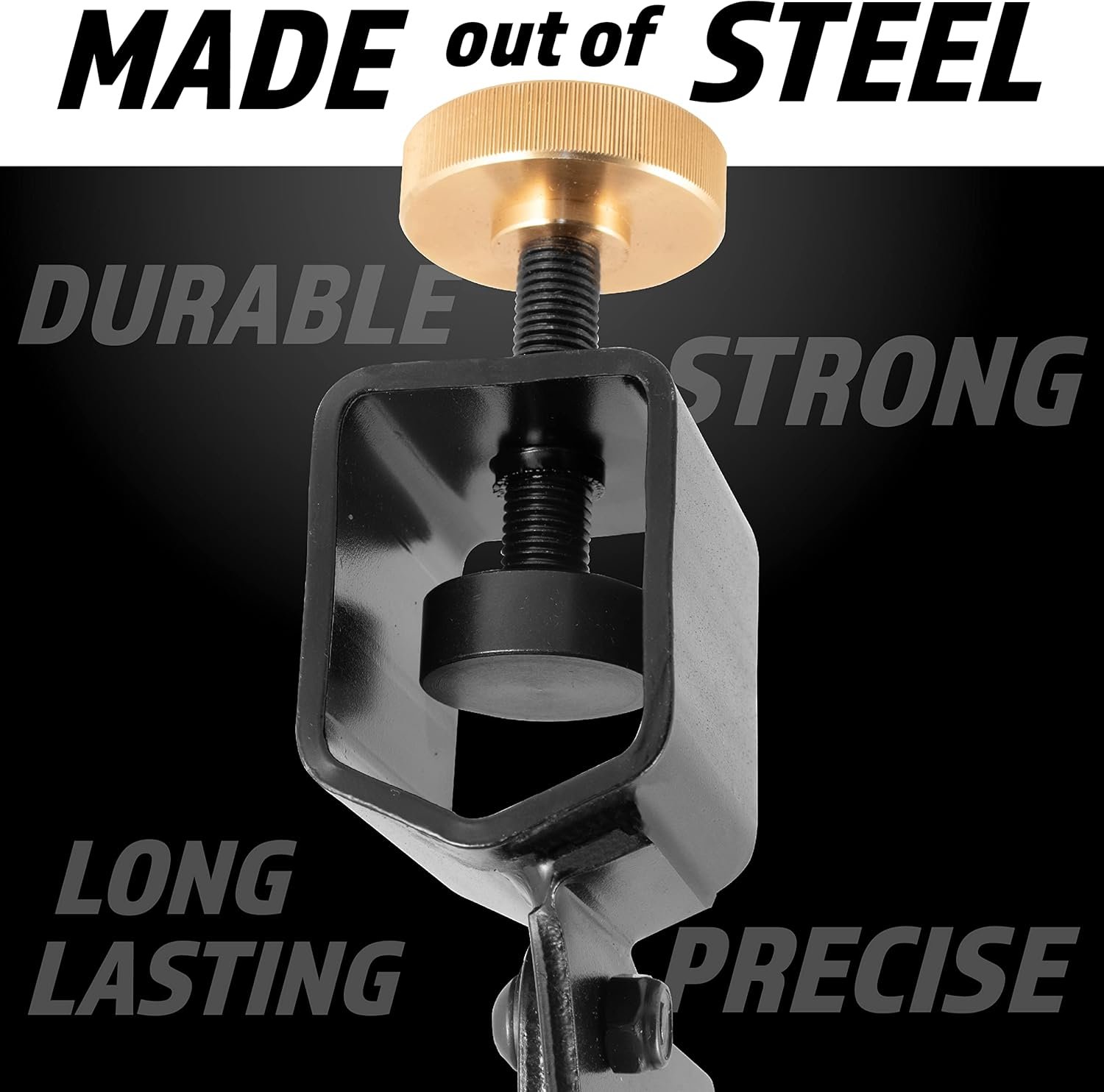

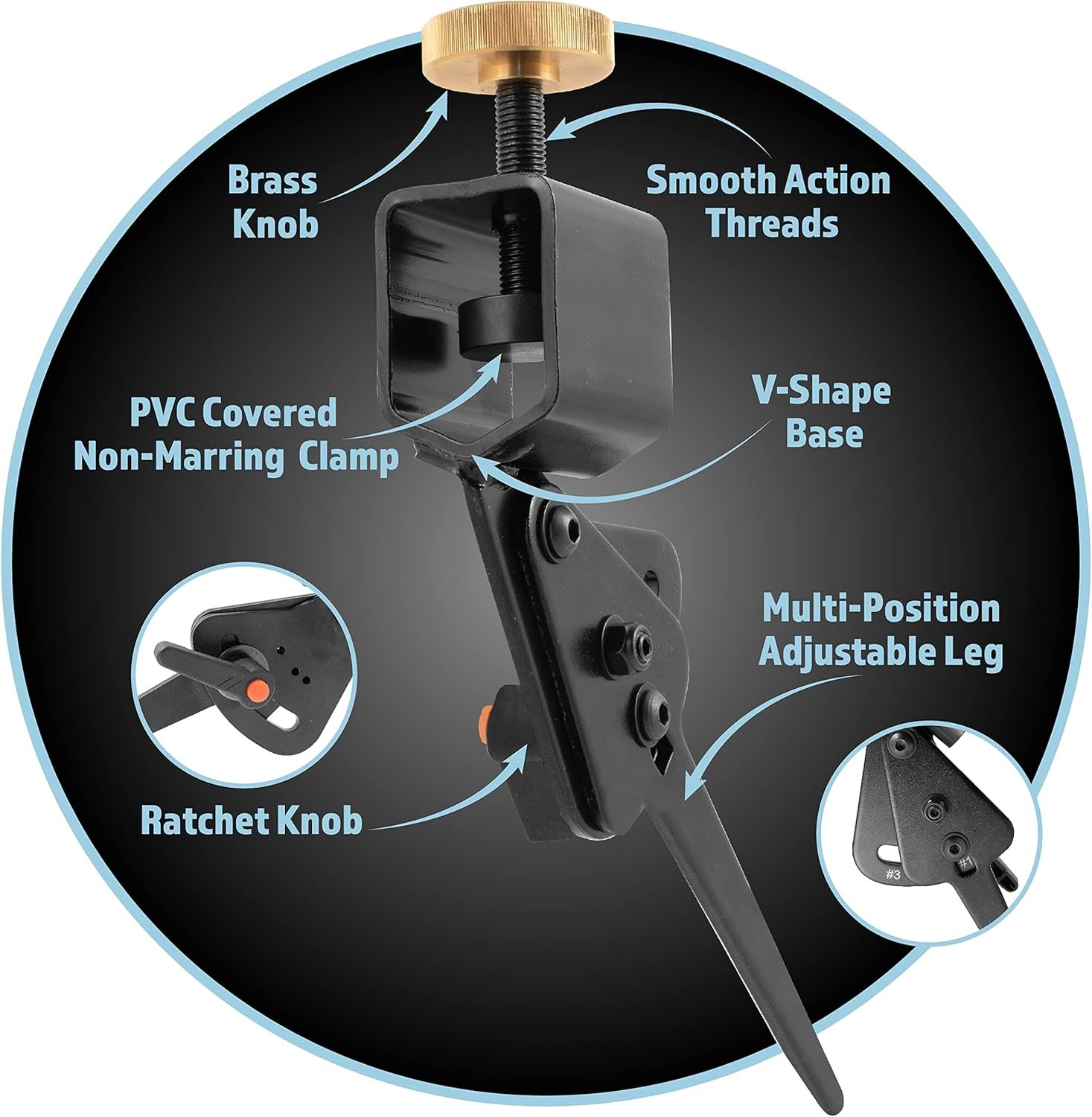

The Multi-Grind is made from high quality steel. The knob is made from brass and the threads provide a smooth rotating action when the brass knob is turned. The clamp pad is covered with a non-marring PVC material to help protect your tool while grinding. The clamp opening has a v-shape base that accepts your turning tool perfectly and won’t allow your tool to accidentally roll or shift while grinding.
